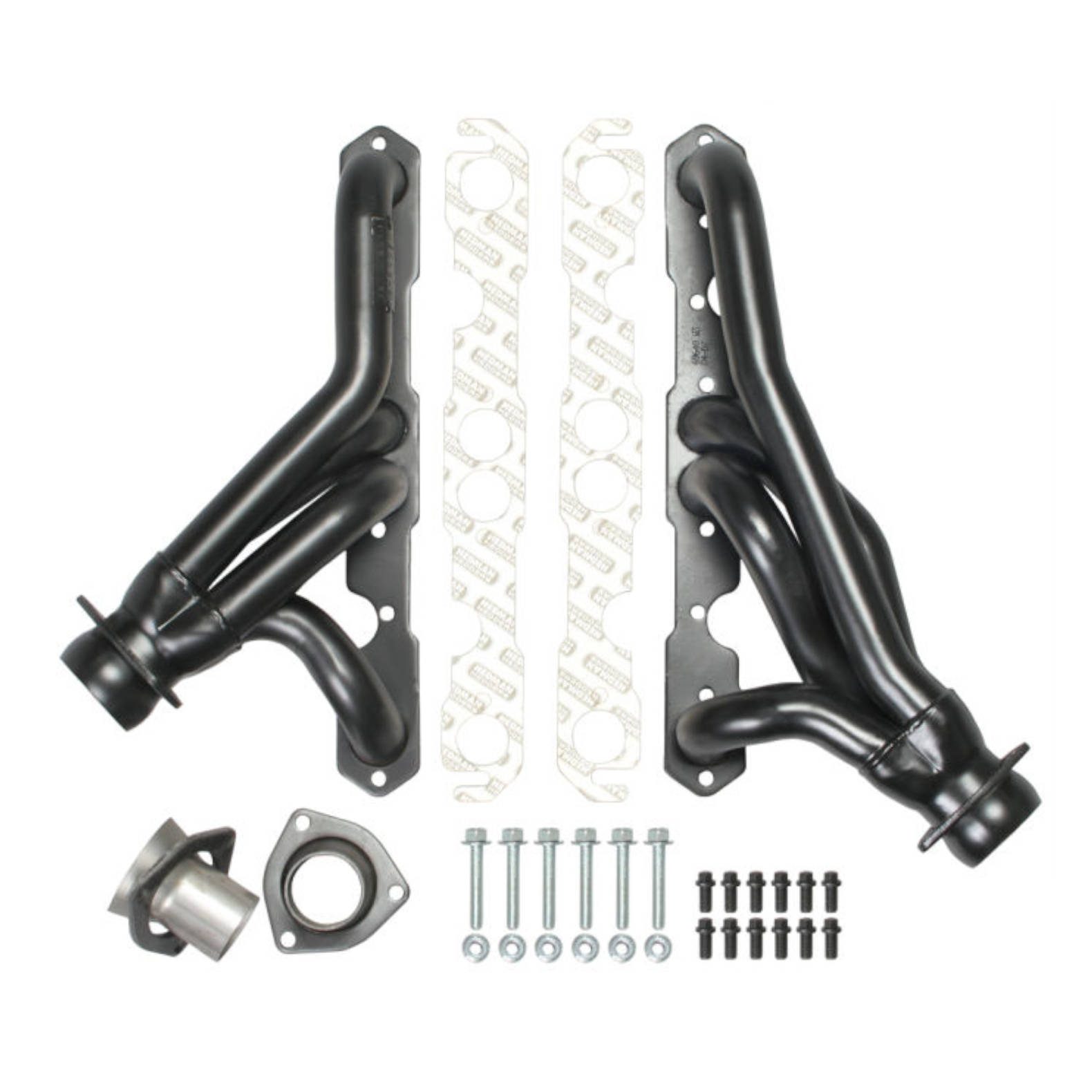

Hedman 69640
Exhaust Headers
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Jeep
1987-1995 Wrangler
Specification
Tube Diameter | 1-1/2 in. |
---|---|
Tube Style | Mid-Length |
Collector Style | BALL and SOCKET Style (Gasketless) |
Air Conditioning | Yes |
Automatic Transmission - Column | Yes |
Automatic Transmission - Floor | Yes |
Manual Transmission - Column | No |
Manual Transmission - Floor | Yes |
Collector Attachment | 2-1/2 in. |
Collector Diameter | 2-1/2 in. |
Collector Size | 2-1/2 in. |
Reducer Outlet Size | 2-1/2 in. |
Exhaust System Diameter | 2-1/2 in. |
Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
E.O. # | No |
Emissions Notes | Not legal for sale or use in California, or on pollution controlled vehicles. |
Engine Notes | Will fit Angle Plug Heads (Chevy Aluminum only, L98) |
Finish | Uncoated |
Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
Flange Style | Standard |
Flange Thickness | 0.3125 in. |
Header Port Shape | Round |
Header Style | Mid-Length Tube |
Notes | 87-95 Jeep Wrangler Chev. 283-400 Swap |
Port Shape | Round |
Power Steering | Yes |
Material | Mild Steel |
Tube Design | Standard |
Tube Length | Mid-Length Tubes |
Tube Material Thickness | 16g |
Tube Size | 1-1/2 in. |
Variations | 69646, 69648 |
With A.I.R. System | No |
With EGR | No |
Weld-Up | No |
Tuned | No |
Bolts/Studs Included | Yes |
Catalytic Converter(s) Included | No |
Collector Bolts Included | Yes |
Crossover Pipe Included | No |
Gasket or Seal Included | Yes |
Header Fasteners Included | Yes |
Installation Hardware Included | Yes |
Motor Mounts Included | No |
Mounting Hardware Included | Yes |
Reducers Included | Yes |
Y-Pipe Included | No |
Quantity | Sold as a pair. |
Primary Tube Gauge | 16g |
Primary Tube Diameter | 1.50 in. |
Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
Header Material | Mild Steel |
Header Finish | Uncoated |
Cylinder Head Port Shape | Round |
Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
Header Construction | MILD STEEL- Standard-Duty |
Replacement Gasket | 27500 |
Replacement Head Flange Gasket | 27500 |
