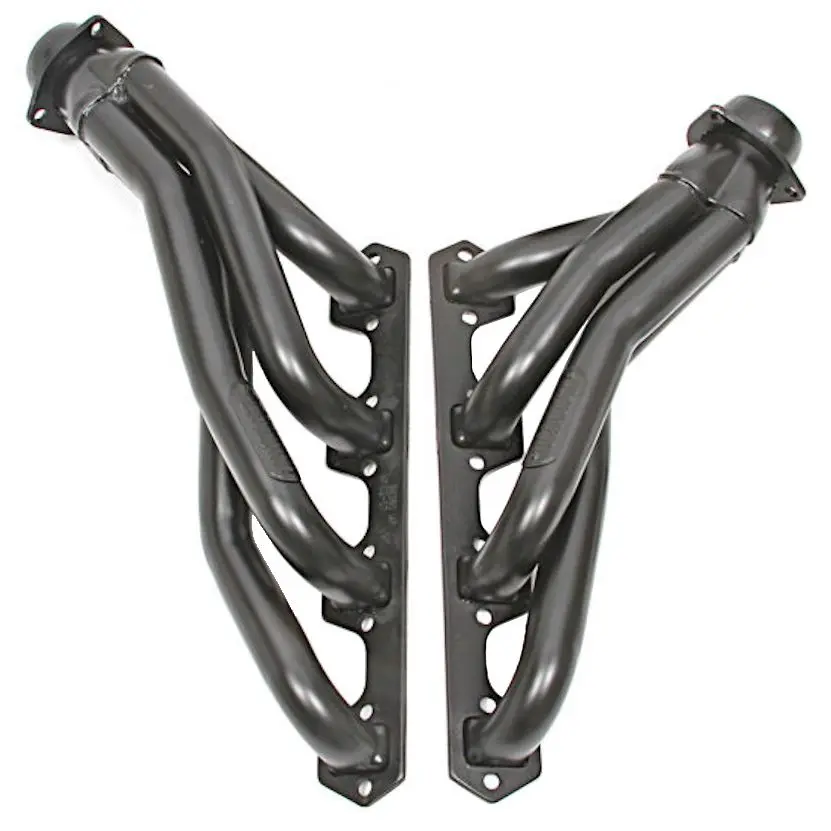

Hedman 88380 79-93 Ford Mustang 302W 5.0L Mid-Length Tube Street Headers
Installation Kit Included
£330.95
Free UK shipping included
Order before 3 pm for same-day dispatch
(Excluding weekends & bank holidays). Free shipping is not available to EU destinations.
Hedman 88380
Street Headers
Mid-Length Tube Type
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
1978-93 Ford Fox-Body Cars With 302W 5.0L Engine
Ford
1978 - 1983 Fairmont
1979 - 1993 Mustang
1983 - 1988 Thunderbird
Mercury
1979 - 1986 Capri
1983 - 1988 Cougar
1978 - 1983 Zephyr
Click here for full vehicle applications
Specifications
| Tube Diameter | 1-1/2 in. |
|---|---|
| Tube Style | Mid-Length |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | Yes |
| Manual Transmission - Floor | Yes |
| Collector Attachment | 2-1/2 in. |
| Collector Diameter | 2-1/2 in. |
| Collector Size | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Exhaust System Dia | 2-1/2 in. |
| Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Engine Version | Ford Windsor Block (W) |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Flange Style | Standard |
| Flange Thickness | 0.3125 in. |
| Header Port Shape | Square |
| Header Style | Mid-Length Tube |
| Notes | 79-93 Mustang 302W (5.0L) & Other Ford and Mercury Fox-Body Models |
| Port Shape | Square |
| Power Steering | Yes |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Mid-Length Tubes |
| Tube Material Thickness | 16g |
| Tube Size | 1-1/2 in. |
| Variations | 88386, 88388 |
| With A.I.R. System | No |
| With Egr | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(S) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Reducers Included | Yes |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (In) | 1.50 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Square |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27340 |
| Replacement Head Flange Gasket | 27340 |
