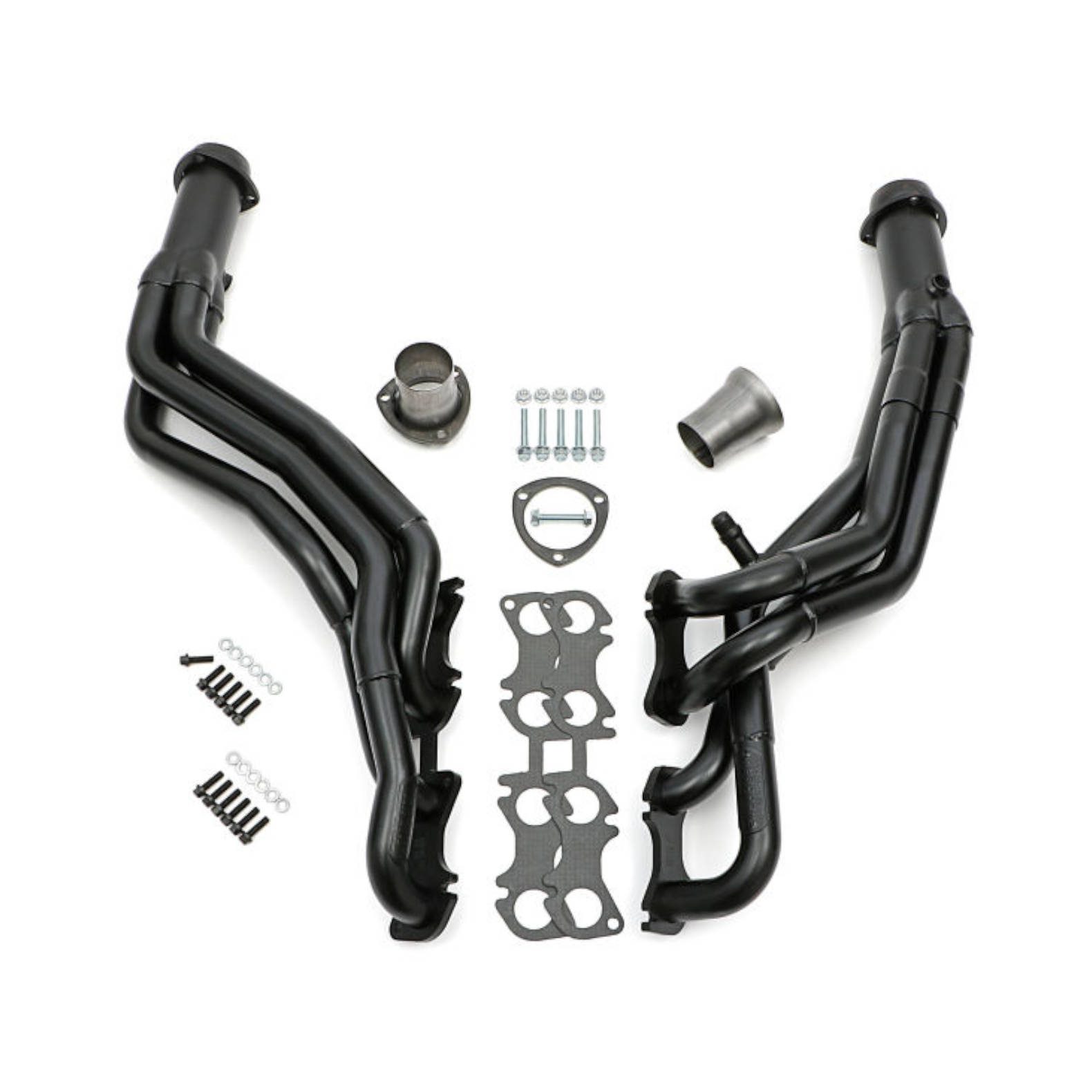

Hedman 88690 Exhaust Headers 96-04 Ford Mustang 4.6L Torque Step
Installation Kit Included
£541.95
Free UK shipping included
Order before 3 pm for same-day dispatch
(Excluding weekends & bank holidays). Free shipping is not available to EU destinations.
Hedman 88690
Exhaust Headers
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Ford
1996-2004 Mustang
Specification
| Tube Diameter | 1-1/2 in. x 1-5/8 in. |
|---|---|
| Tube Style | Long Tubes |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Air Conditioning | Yes |
| Automatic Transmission - Column | No |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Exhaust System Diameter | 2-1/2 in. |
| Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Engine Version | Ford 4.6L Modular |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Flange Style | Standard |
| Flange Thickness | 0.375 in. |
| Header Port Shape | Round |
| Header Style | Long Tube- Stepped |
| Notes | 96-04 Ford Mustang 4.6L (2V) |
| Port Shape | Round |
| Power Steering | Yes |
| Material | Mild Steel |
| Special Engine Notes | 2V SOHC |
| Tube Design | Stepped Tubes |
| Tube Length | Long Tubes |
| Tube Material Thickness | 16g |
| Tube Size | 1-1/2 in. x 1-5/8 in. |
| Variations | 88696 |
| Installation Notes | Requires the use of Four 18 in. Oxygen sensor Extension Wires- NOT INCLUDED! |
| With A.I.R. System | No |
| With EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converters(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Reducers Included | Yes |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter | 1.50 in. x 1.625 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Round |
| Cylinder Head | Stock Profile Heads |
| O2 Provision | Yes |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27450 |
| Replacement Head Flange Gasket | 27450 |
