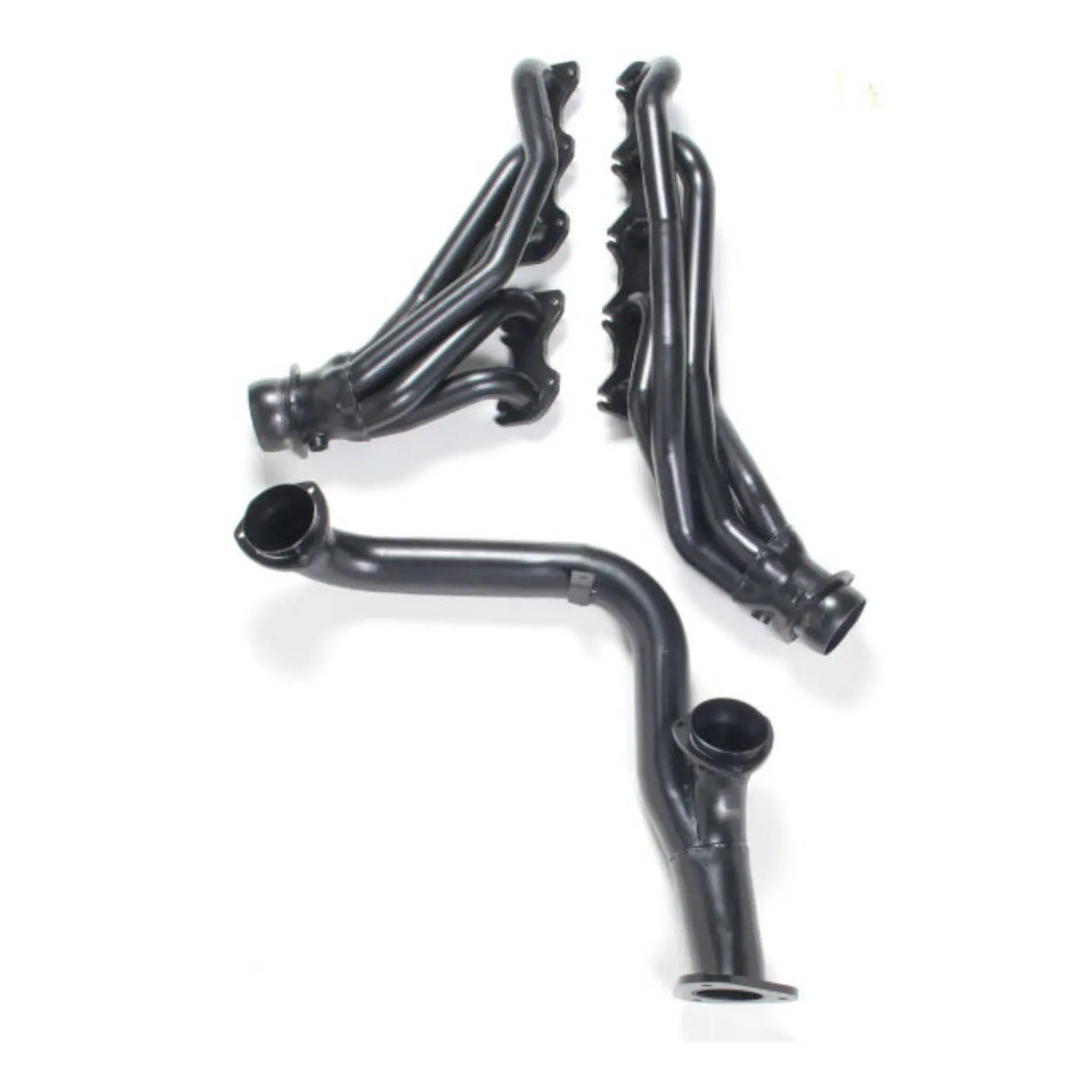

Hedman 89660
Exhaust Headers
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Ford
1999-2004 F-250 Super Duty
1999-2004 F-350 Super Duty
Specification
Tube Diameter | 1-1/2 in. |
---|---|
Tube Style | Shorty |
Collector Style | Stock Collector |
Air Conditioning | Yes |
Automatic Transmission - Column | Yes |
Automatic Transmission - Floor | No |
Manual Transmission - Column | No |
Manual Transmission - Floor | No |
Footnotes | 144. Complete with Y-Pipe to single catalytic converter. |
Collector Attachment | Stock |
Collector Size | Stock |
Contents | headers, head and collector flange gaskets (when applicable), mounting hardware |
E.O. # | Yes |
Emissions Notes | EO# D167-36 (click here for covered vehicles in ARB.CA.GOV document) |
Finish | Uncoated |
Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
Flange Style | Standard |
Flange Thickness | 0.375 in. |
Header Port Shape | Round |
Header Style | Mid-Length Tube |
Port Shape | Round |
Power Steering | Yes |
Material | Mild Steel |
Tube Design | Standard |
Tube Length | Short Tubes |
Tube Material Thickness | 16g |
Tube Size | 1-1/2 in. |
Variations | 89666 |
With A.I.R. System | No |
With EGR | No |
Weld-Up | No |
Tuned | No |
Bolts/Studs Included | Yes |
Catalytic Converter(s) Included | No |
Crossover Pipe Included | Yes |
Gasket or Seal Included | Yes |
Header Fasteners Included | Yes |
Installation Hardware Included | Yes |
Motor Mounts Included | No |
Mounting Hardware Included | Yes |
Reducers Included | No |
Y-Pipe Included | No |
Crossover Pipe Style | Y-pipe |
Quantity | Sold as a kit. |
Primary Tube Gauge | 16g |
Primary Tube Diameter | 1.50 in. |
Package Contents | Set of Headers, mounting hardware and gaskets |
Header Material | Mild Steel |
Header Finish | Uncoated |
Cylinder Head Port Shape | Round |
Cylinder Head | Stock Profile Heads |
Header Construction | MILD STEEL- Standard-Duty |
Replacement Gasket | 27580 |
Replacement Head Flange Gasket | 27580 |
