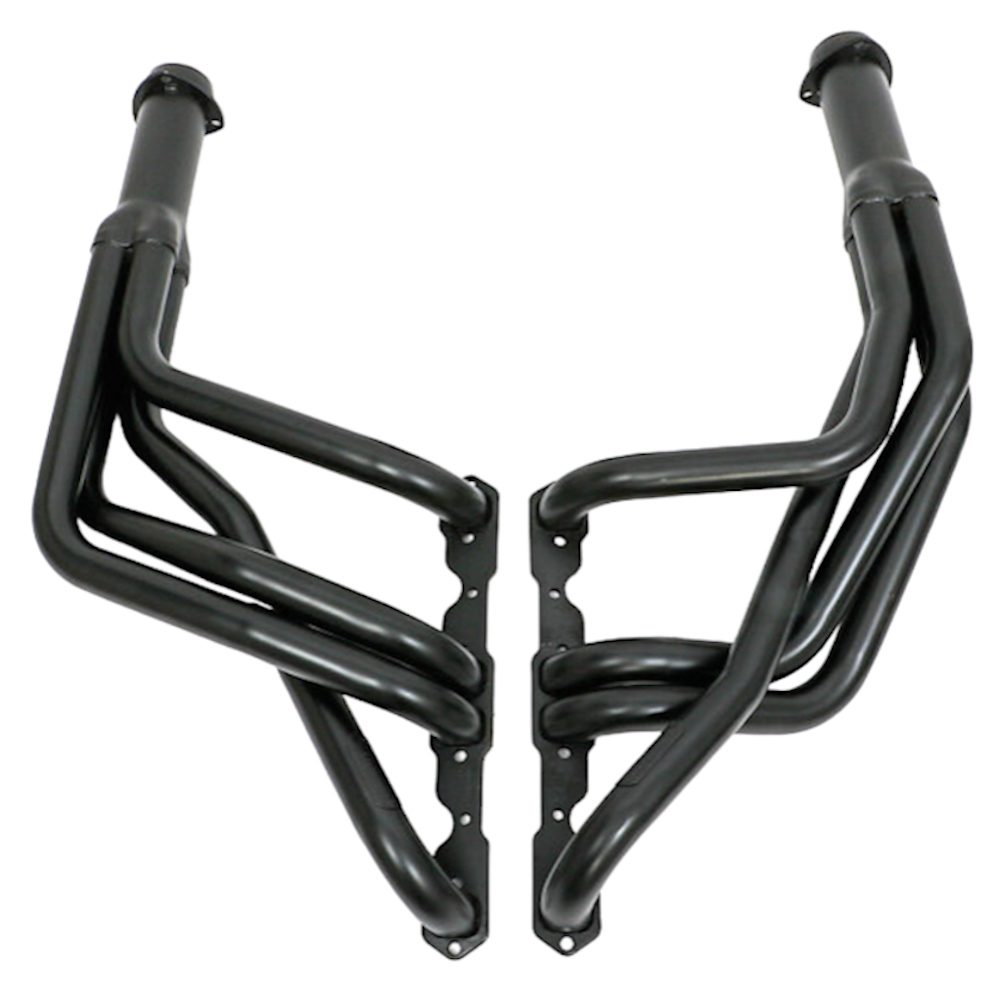

Hedman 65003 Small Block Chevy 283-400 Cu. In. Long Tube Street Headers
Installation Kit Included
£442.95
Free UK shipping included
Order before 3 pm for same-day dispatch
(Excluding weekends & bank holidays). Free shipping is not available to EU destinations.
Hedman 65003
Exhaust Headers
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Chevrolet
1967-1969 Camaro
1968-1968 Chevy II
1969-1974 Nova
Specification
| Tube Diameter | 1-3/4 in. |
|---|---|
| Tube Style | Long Tubes |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | Yes |
| Manual Transmission - Floor | Yes |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Exhaust System Diameter | 2-1/2 in. |
| Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Engine | Chevy SB 283-400 (Gen 1) 1958-86 |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Flange Style | Standard |
| Flange Thickness | 0.3125 in. |
| Header Port Shape | Rectangle |
| Header Style | Long Tube |
| Notes | 67-69 Camaro, 68-74 Nova 283-400 |
| Port Shape | Rectangle |
| Power Steering | Yes |
| Product Info | 67-69 CHEVROLET CAMARO- 13/4 in., 3 in. - STANDARD TUBE |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Long Tubes |
| Tube Material Thickness | 16g |
| Tube Size | 1-3/4 in. |
| Variations | 66003 |
| With A.I.R. System | No |
| With EGR | No |
| Weld-Up | No |
| Tuned | Yes |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket or Seal Included | Yes |
| Header Fasteners Including | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Reducers Included | Yes |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter | 1.75 in. |

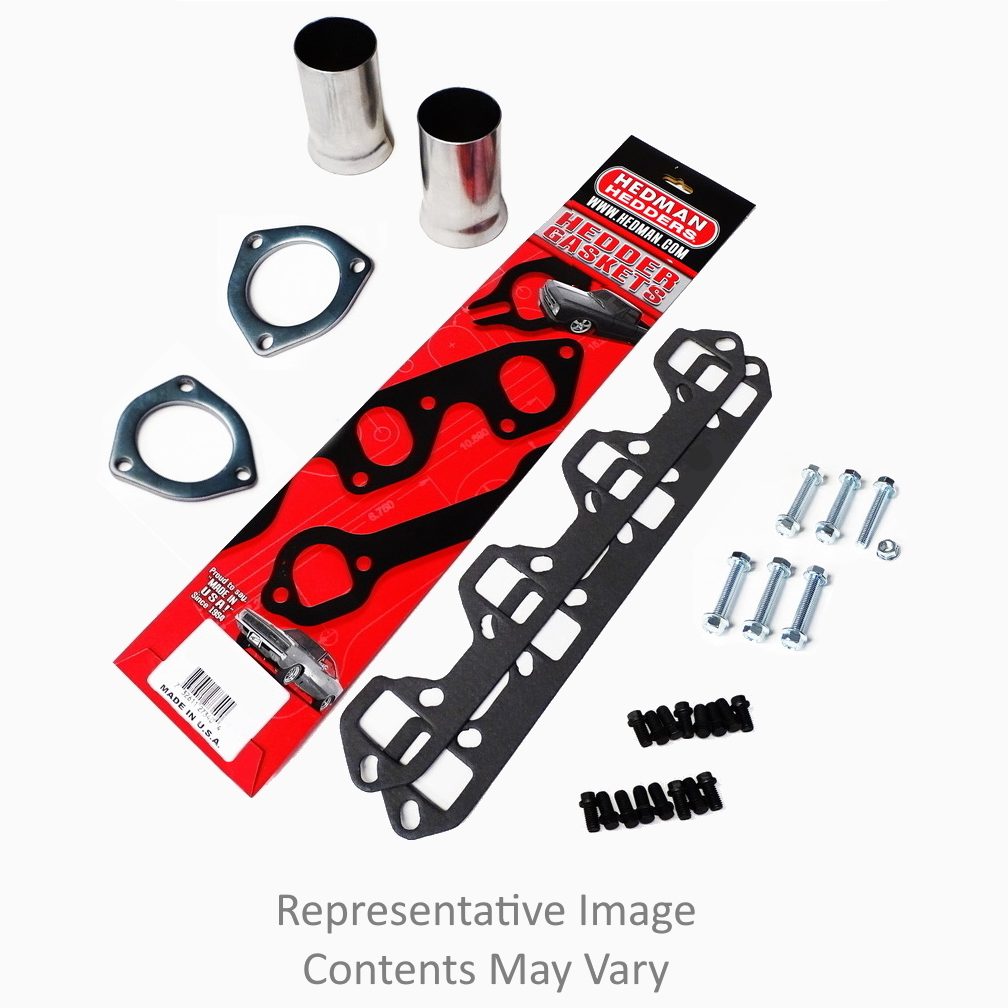

| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Rectangle |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27560 |
| Replacement Head Flange Gasket | 27560 |
