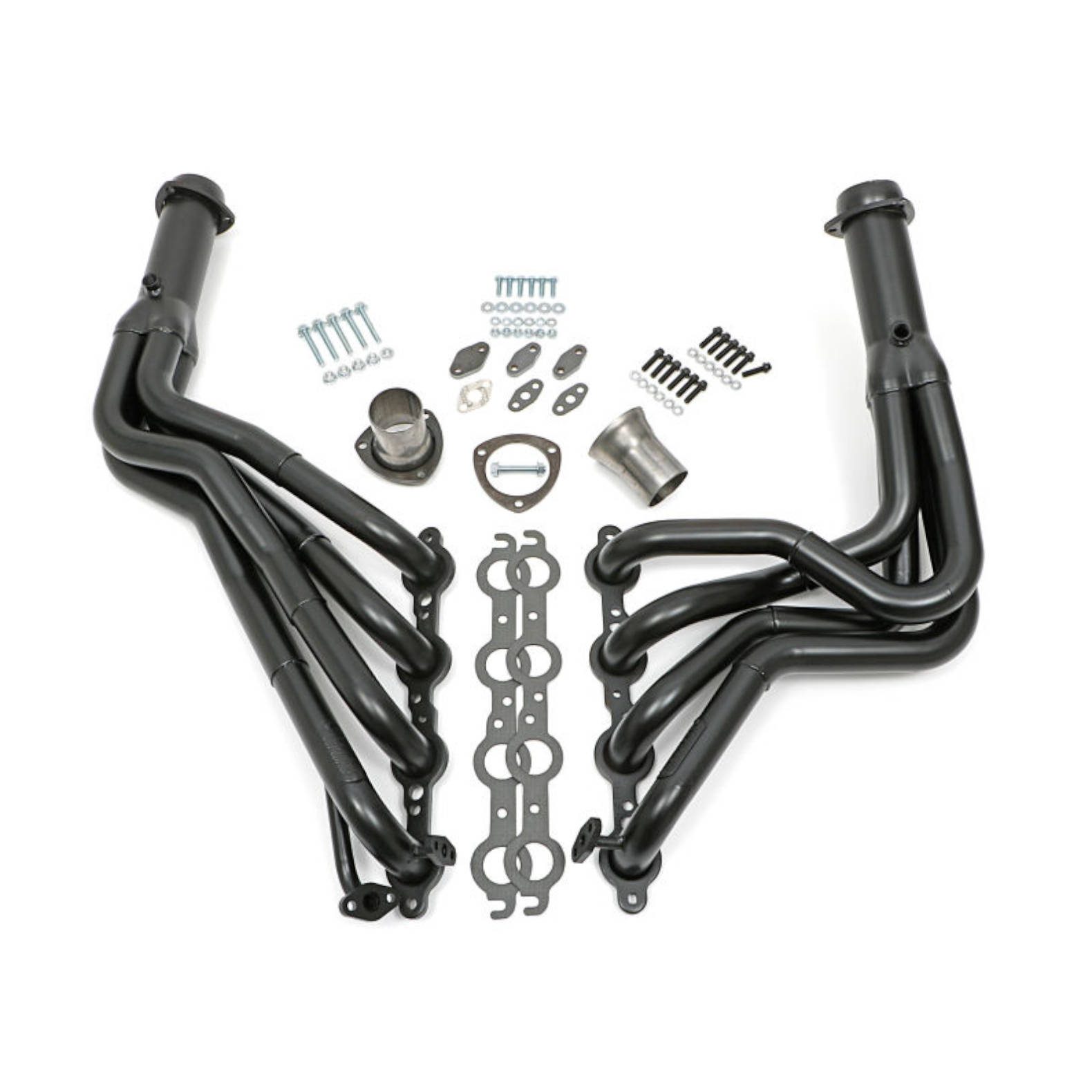

Hedman 68534
Exhaust Headers
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Chevrolet
1998-2002 Camaro
Pontiac
1998-2002 Firebird
Specification
Tube Diameter | 1-5/8 in. x 1-3/4 in. |
---|---|
Tube Style | Long Tubes |
Collector Style | BALL and SOCKET Style (Gasketless) |
Air Conditioning | Yes |
Automatic Transmission - Column | No |
Automatic Transmission - Floor | Yes |
Manual Transmission - Column | No |
Manual Transmission - Floor | Yes |
Collector Attachment | 3 in. |
Collector Diameter | 3 in. |
Collector Size | 3 in. |
Reducer Outlet Size | 2-1/2 in. |
Exhaust System Diameter | 2-1/2 in. |
Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
E.O. # | No |
Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
Finish | Uncoated |
Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
Flange Style | Standard |
Flange Thickness | 0.375 in. |
Header Port Shape | Round |
Header Style | Long Tube- Stepped |
Notes | 98-02 Camaro, Firebird, T/A LS1 |
Port Shape | Round |
Power Steering | Yes |
Material | Mild Steel |
Tube Design | Stepped Tubes |
Tube Length | Long Tubes |
Tube Material Thickness | 16g |
Tube Size | 1-5/8 in. x 1-3/4 in. |
Variations | 66534 |
Installation Notes | Y-pipe available and recommended for an easier install. |
With A.I.R. System | No |
With EGR | No |
Weld-Up | No |
Tuned | No |
Bolts/Studs Included | Yes |
Catalytic Converter(s) Included | No |
Collector Bolts Included | Yes |
Crossover Pipe Included | No |
Gasket or Seal Included | Yes |
Header Fasteners Included | Yes |
Installation Hardware Included | Yes |
Motor Mounts Included | No |
Mounting Hardware Included | Yes |
Reducers Included | Yes |
Y-Pipe Included | No |
Quantity | Sold as a pair. |
Primary Tube Gauge | 16g |
Primary Tube Diameter | 1.625 in. x 1.75 in. |
Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
Header Material | Mild Steel |
Header Finish | Uncoated |
Cylinder Head Port Shape | Round |
Cylinder Head | Stock Profile Heads |
O2 Provision | Yes |
Header Construction | MILD STEEL- Standard-Duty |
Replacement Gasket | 27470 |
Replacement Head Flange Gasket | 27470 |
