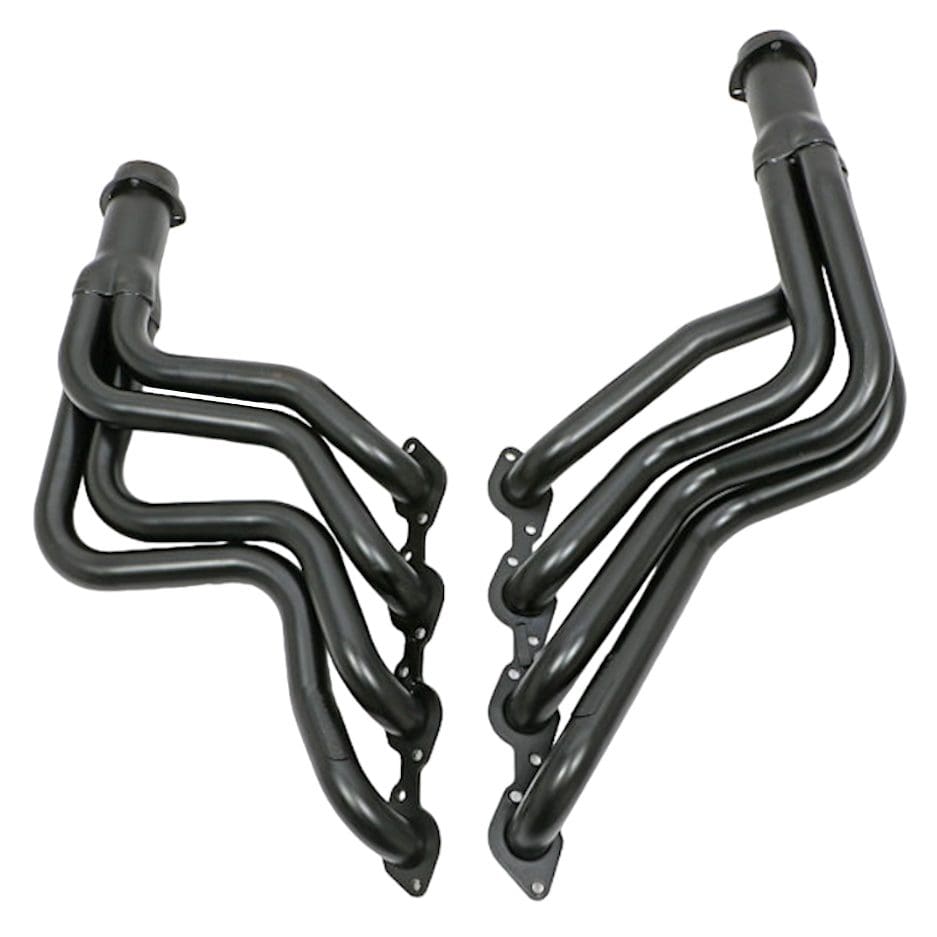

Hedman 68190
Street Headers
Long Tube Type
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Big Block Chevy 396 - 502 CID
1964-1977 Various Cars
1965 - 1970 Bel Air, Biscayne, Impala
1969 - 1970 Brookwood
1966 - 1970 Caprice
1964 - 1977 Chevelle, Malibu, El Camino
1965 - 1970 Chevrolet Passenger
1967 - 1969 Camaro
1968 - 1974 Nova & Chevy II
1969 - 1970 Townsman
Click here for full vehicle applications
Specifications
Tube Diameter | 1-3/4 in. |
---|---|
Tube Style | Long Tubes |
Collector Style | BALL and SOCKET Style (Gasketless) |
Air Conditioning | No |
Automatic Transmission - Column | Yes |
Automatic Transmission - Floor | Yes |
Manual Transmission - Column | Yes |
Manual Transmission - Floor | Yes |
Collector Attachment | 3 in. |
Collector Diameter | 3 in. |
Collector Size | 3 in. |
Reducer Outlet Size | 2-1/2 in. |
Exhaust System Diameter | 2-1/2 in. |
Box Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
Finish | Uncoated |
Finish Type | Uncoated Mild steel |
Flange Style | Standard |
Flange Thickness | 0.3125 in. |
Header Port Shape | Round |
Header Style | Long Tube |
Notes | 64-77 Various Chev. Car 396-502 |
Port Shape | Round |
Power Steering | No |
Power Steering Notes | NO POWER STEERING on Camaro, Chevy II/Nova! Check Specific YMM Info for details. |
Material | Mild Steel |
Tube Design | Standard |
Tube Length | Long Tubes |
Tuber Material Thickness | 16g |
Tube Size | 1-3/4 in. |
Variations | 68196, 68198 |
With A.I.R. System | No |
With EGR | No |
Weld-Up | No |
Tuned | No |
Bolts/Studs Included | Yes |
Catalytic Converters Included | No |
Collector Bolts Included | Yes |
Crossover Pipe Included | No |
Gasket Oil Seal Included | Yes |
Installation Hardware Included | Yes |
Motor Mounts Included | No |
Mounting Hardware Included | Yes |
Reducers Included | Yes |
Y-Pipe Included | No |
Quantity | Sold as a pair. |
Primary Tube Gauge | 16g |
Primary Tube Diameter (IN) | 1.75 in. |
Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
Header Material | Mild Steel |
Header Finish | Uncoated |
Cylinder Head Port Shape | Round |
Cylinder Head | Stock Profile Heads |
Header Construction | MILD STEEL- Standard-Duty |
Replacement Gaskets | 27530 |
Replacement Head Flange Gasket | 27530 |
