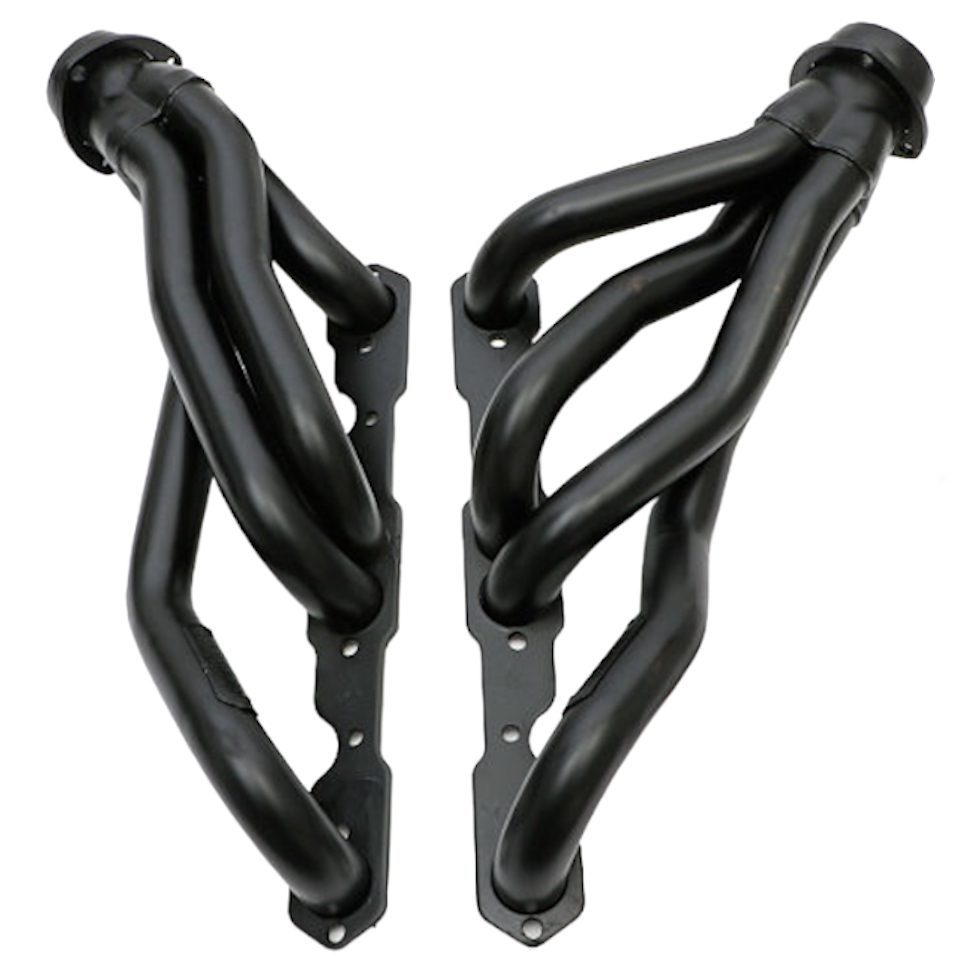

Hedman 68600
Street Headers
Mid-Length Tube Type
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Small Block Chevy 283-400 CID (Gen 1)
Various Cars 1964-1993
Automatic Transmission Only
Buick
1978 - 1987 Regal
Chevrolet
1971 - 1975 Bel Air
1971 - 1972 Biscayne
1967 - 1981 Camaro
1971 - 1993 Caprice
1964 - 1973 Chevelle
1968 Chevy II
1964 - 1987 El Camino
1971 - 1985 Impala
1973 - 1976 Laguna
1964 - 1983 Malibu
1970 - 1987 Monte Carlo
1969 - 1979 Nova
1971 - 1972 Townsman
Oldsmobile
1964 - 1971 442
1978 - 1981 Cutlass
1964 - 1975 Vista Cruiser
Pontiac
1978 - 1987 Grand Prix
1964 - 1981 LeMans
1964 - 1970 Tempest
1971 - 1977 Ventura
Click here for full vehicle applications
Specifications
Tube Diameter | 1-5/8 in. |
---|---|
Tube Style | Mid-Length |
Collector Style | BALL and SOCKET Style (Gasketless) |
Automatic Transmission - Column | Yes |
Automatic Transmission - Floor | Yes |
Manual Transmission - Column | No |
Manual Transmission - Floor | No |
Collector Attachment | 3 in. |
Collector Diameter | 3 in. |
Collector Size | 3 in. |
Reducer Outlet Size | 2-1/2 in. |
Exhaust System Diameter | 2-1/2 in. |
Content | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
E.O. # | No |
Emission Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
Engine | Chevy SB 283-400 (Gen 1) 1958-86 |
Finish | Uncoated |
Flange Style | Standard |
Flange Thickness | 0.3125 in. |
Header Port Shape | Round |
Header Style | Mid-Length Tube |
IMPORTANT! | Automatic Transmission ONLY! |
Notes | 67-81 F; 64-83 A, 82-88 G; 68-79 X; 71-94 B; 84-04 Astro 283-400 |
Port Shape | Round |
Power Steering | Yes |
Material | Mild Steel |
Tube Design | Standard |
Tube Length | Mid-Length Tubes |
Tube Material Thickness | 16g |
Tube Size | 1-5/8 in. |
Variations | 68606, 68603, 68608 & 63608. 62600, 62606 & 62603 304 Stainless Steel. |
With A.I.R System | No |
With EGR | No |
Weld-up | No |
Tuned | No |
Bolts/Studs Included | Yes |
Catalytic Converter Included | No |
Collector Bolts Included | Yes |
Crossover Pipe Included | No |
Gasket or Seal Included | Yes |
Header Fasteners Included | Yes |
Installation Hardware Included | Yes |
Motor Mounts Included | No |
Mounting Hardware Included | Yes |
Reducers Included | Yes |
Y-Pipe Included | No |
Quantity | Sold as a pair. |
Primary Tube Guage | 16g |
Primary Tube Diameter | 1.625 in. |
Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
Header Material | Mild Steel |
Cylinder Port Head Shape | Round |
Cylinder Port Head | Stock Profile Heads |
Replacement Gasket | 27500 |
Replacement Head Flange Gasket | 27500 |
