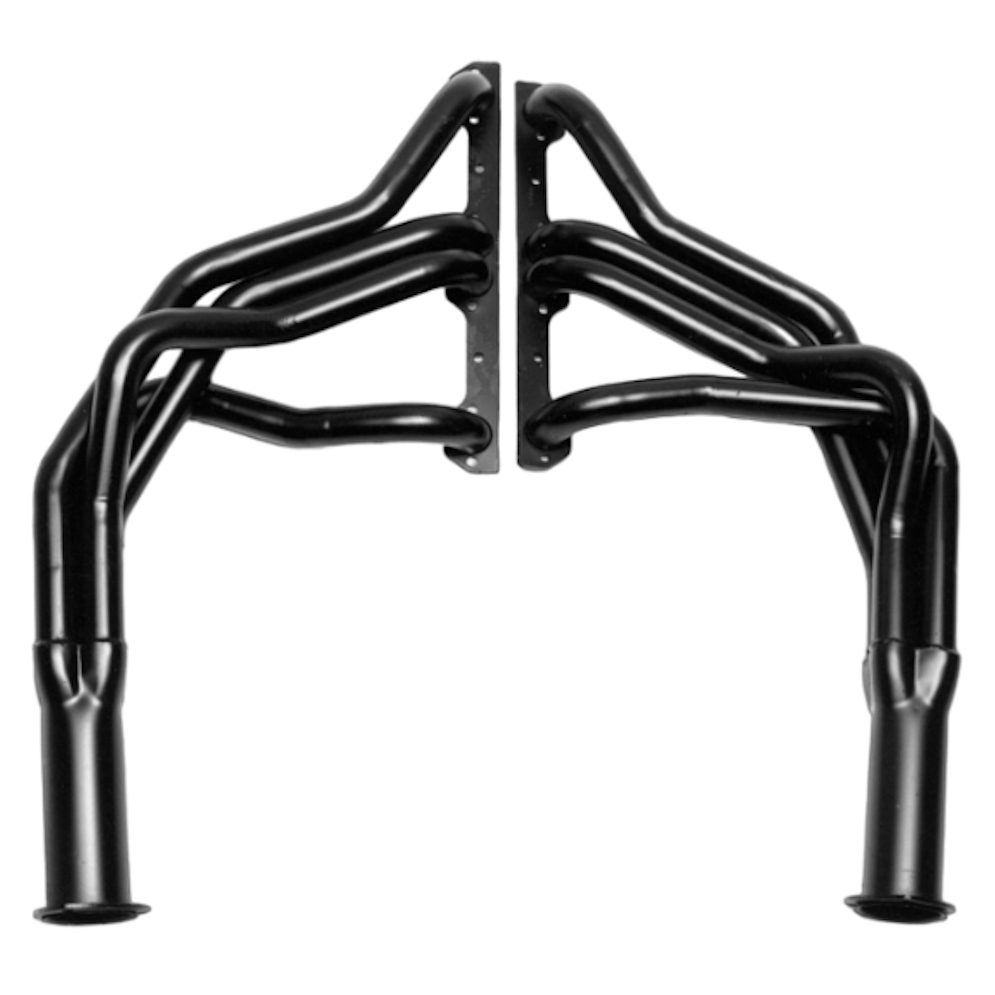

Hedman 69060
Exhaust Headers
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
1971-91 C-Class Motorhome With Chevy 283-400 CID V8
Chevrolet
1975 - 1991 G10
1971 - 1974 G10 Van
1975 - 1991 G20
1971 - 1974 G20 Van
1975 - 1991 G30
1971 - 1974 G30 Van
GMC
1975 - 1978 G15
1971 - 1974 G15/G1500 Van
1979 - 1991 G1500
1975 - 1978 G25
1971 - 1974 G25/G2500 Van
1979 - 1991 G2500
1975 - 1978 G35
1971 - 1974 G35/G3500 Van
1979 - 1991 G3500
Click here for full vehicle applications
Specifications
Tube Diameter | 1-5/8 in. |
---|---|
Tube Style | Long Tubes |
Collector Style | BALL and SOCKET Style (Gasketless) |
Air Conditioning | Yes |
Automatic Transmission - Column | Yes |
Automatic Transmission - Floor | Yes |
Manual Transmission - Column | Yes |
Manual Transmission - Floor | Yes |
Collector Attachment | 3 in. |
Collector Diameter | 3 in. |
Collector Size | 3 in. |
Reducer Outlet Size | 2-1/2 in. |
Exhaust System Diameter | 2-1/2 in. |
Content | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
E.O. # | No |
Emission Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
Engine | Uncoated |
Finish | UNCOATED Mild Steel! Shipped with Temporary Paint. |
Flange Style | Standard |
Flange Thickness | 0.3125 in. |
Header Port Shape | Round |
Header Style | Long Tube |
Notes | 71-91 Chev. C-Class Motorhome, Van 283-400 |
Port Shape | Round |
Power Steering | Yes |
Material | Mild Steel |
Tube Design | Standard |
Tube Length | Long Tubes |
Tube Material Thickness | 16g |
Tube Size | 1-5/8 in. |
Variations | 69066, 69860 |
With A.I.R System | No |
With EGR | No |
Weld-up | No |
Tuned | No |
Bolts/Studs Included | Yes |
Catalytic Converter Included | No |
Collector Bolts Included | Yes |
Crossover Pipe Included | No |
Gasket or Seal Included | Yes |
Header Fasteners Included | Yes |
Installation Hardware Included | Yes |
Motor Mounts Included | No |
Mounting Hardware Included | Yes |
Reducers Included | Yes |
Y-Pipe Included | No |
Quantity | Sold as a pair. |
Primary Tube Gauge | 16g |
Primary Tube Diameter | 1.625 in. |
Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
Header Material | Mild Steel |
Cylinder Port Head Shape | Round |
Cylinder Port Head | Stock Profile Heads |
Replacement Gasket | 27500 |
Replacement Head Flange Gasket | 27500 |
