Hedman 79030 Exhaust Headers Full Length Design 70-91 Dodge Van, Class C Motorhome 273-360
Installation Kit Included
£409.95
Free UK shipping included
Order before 3 pm for same-day dispatch
(Excluding weekends & bank holidays). Free shipping is not available to EU destinations.

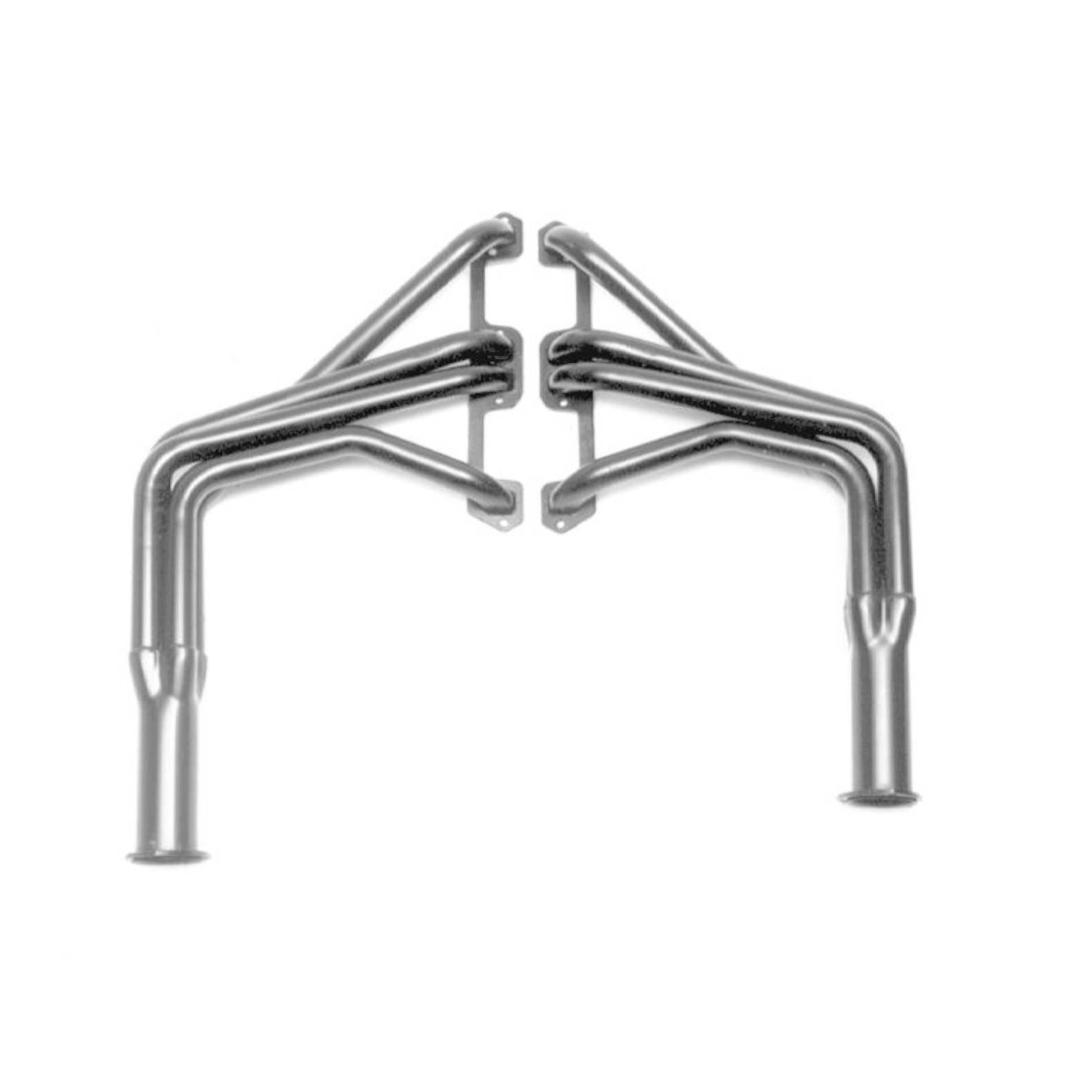

Hedman 79030
Exhaust Headers
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Dodge
1975-1980 B100
1971-1974 B100 Van
1981-1991 B150
1975-1980 B200
1971-1974 B200 Van
1981-1991 B250
1975-1980 B300
1971-1974 B300 Van
1981-1991 B350
Specification
| Tube Diameter | 1-5/8 in. |
|---|---|
| Tube Style | Long Tubes |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | Yes |
| Manual Transmission - Floor | Yes |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Exhaust System Diameter | 2-1/2 in. |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Flange Style | Standard |
| Flange Thickness | 0.3125 in. |
| Header Port Shape | Rectangle |
| Header Style | Long Tube |
| Notes | 70-91 Dodge Van, Class C Motorhome 273-360 |
| Port Shape | Rectangle |
| Power Steering | Yes |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Long Tubes |
| Tube Material Thickness | 16g |
| Tube Size | 1-5/8 in. |
| Variations | 79036 |
| With A.I.R. System | No |
| With EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Reducers Included | Yes |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter | 1.625 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Rectangle |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27970 |
| Replacement Head Flange Gasket | 27970 |
