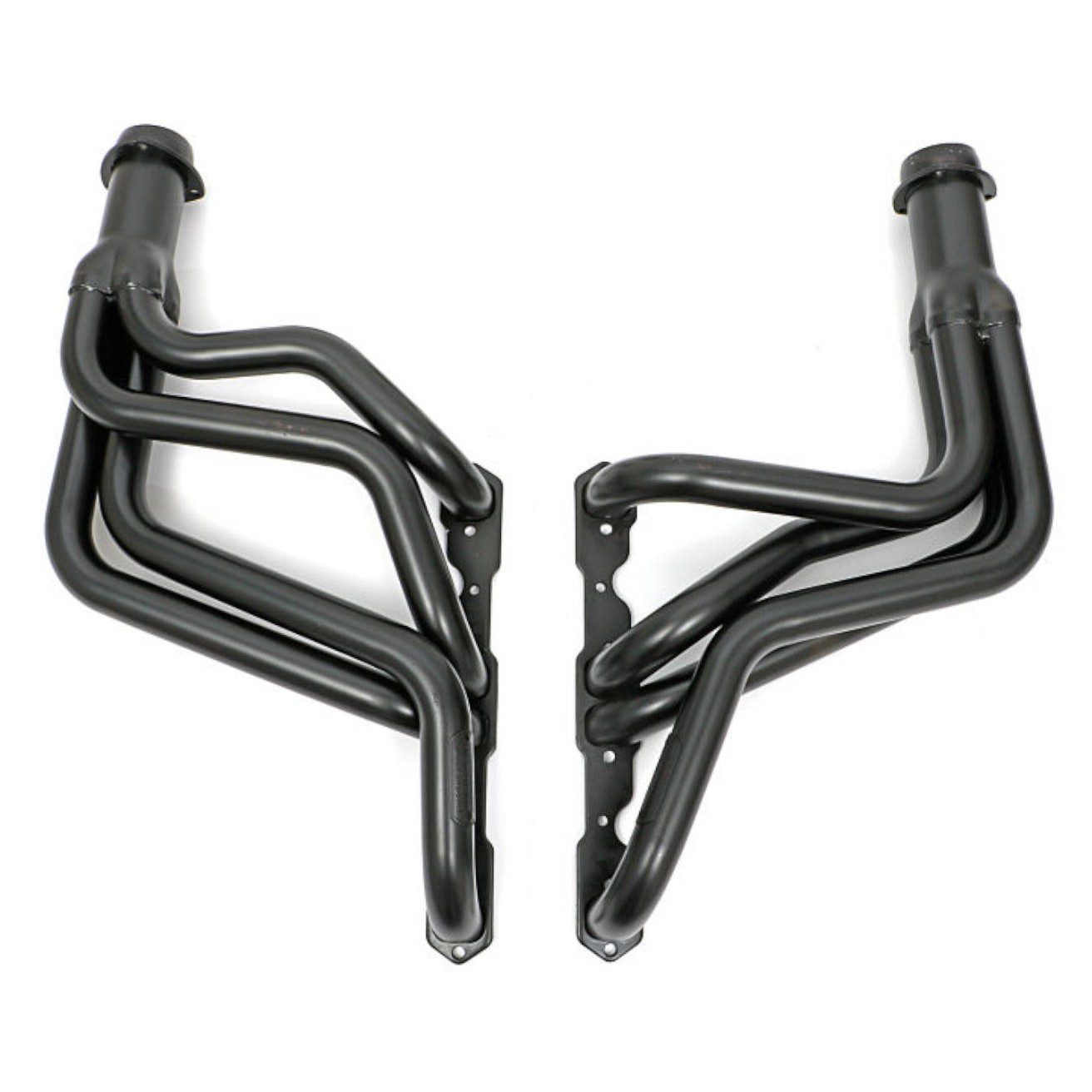

Hedman 65104 Exhaust Headers 1970-81 Chevrolet Camaro & 1975-79 Chevrolet Nova 283-400 Without A.I.R.

Installation Kit Included

Hedman - Made in the USA

£425.95

Free UK shipping included

Order before 3 pm for same-day dispatch
(Excluding weekends & bank holidays). Free shipping is not available to EU destinations.
Financing Option

1 in stock

Hedman 65104
Exhaust Headers


NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.

Application:

Chevrolet

1970-1981 Camaro
1975-1979 Nova

Pontiac

1975-1977 Ventura

Specification

Tube Diameter 1-3/4 in.
Tube Style Long Tubes
Collector Style BALL and SOCKET Style (Gasketless)
Air Conditioning Yes
Automatic Transmission - Column Yes
Automatic Transmission - Floor Yes
Manual Transmission - Column No
Manual Transmission - Floor Yes
Footnotes 49. Will not fit Saginaw close ratio steering with 825 steering box.
Footnotes 103. Will fit angle plug heads ( Chevy Aluminum L98 Profile Only)
Collector Attachment 3 in.
Collector Diameter 3 in.
Collector Size 3 in.
Reducer Outlet Size 2-1/2 in.
Exhaust System Diameter 2-1/2 in.
Contents Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
E.O. # No
Emissions Notes Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish Uncoated
Finish Type UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style Standard
Flange Thickness 0.3125 in.
Header Port Shape Rectangle
Header Style Long Tube
Notes 70-81 Camaro, 75-79 Nova 283-400
Key Feature Without A.I.R.
Port Shape Rectangle
Power Steering Yes
Material Mild Steel
Tube Design Standard
Tube Length Long Tubes
Tube Material Thickness 16g
Tube Size 1-3/4 in.
Variations 66104
With A.I.R. System No
With EGR No
Weld-Up No
Tuned No
Bolts/Studs Included Yes
Catalytic Converter(s) Included No
Collector Bolts Included Yes
Crossover Pipe Included No
Gasket or Seal Included Yes
Header Fasteners Included Yes
Installation Hardware Included Yes
Motor Mounts Included No
Mounting Hardware Included Yes
Reducers Included Yes
Y-Pipe Included No
Quantity Sold as a pair.
Primary Tube Gauge 16g
Primary Tube Diameter 1.75 in.
Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material Mild Steel
Header Finish Uncoated
Cylinder Head Port Shape Rectangle
Cylinder Head Fits Factory GM Aluminum Angle Plug Cylinder Head (L98 Profile Only)
Header Construction MILD STEEL- Standard-Duty
Replacement Gasket 27560
Replacement Head Flange Gasket 27560
