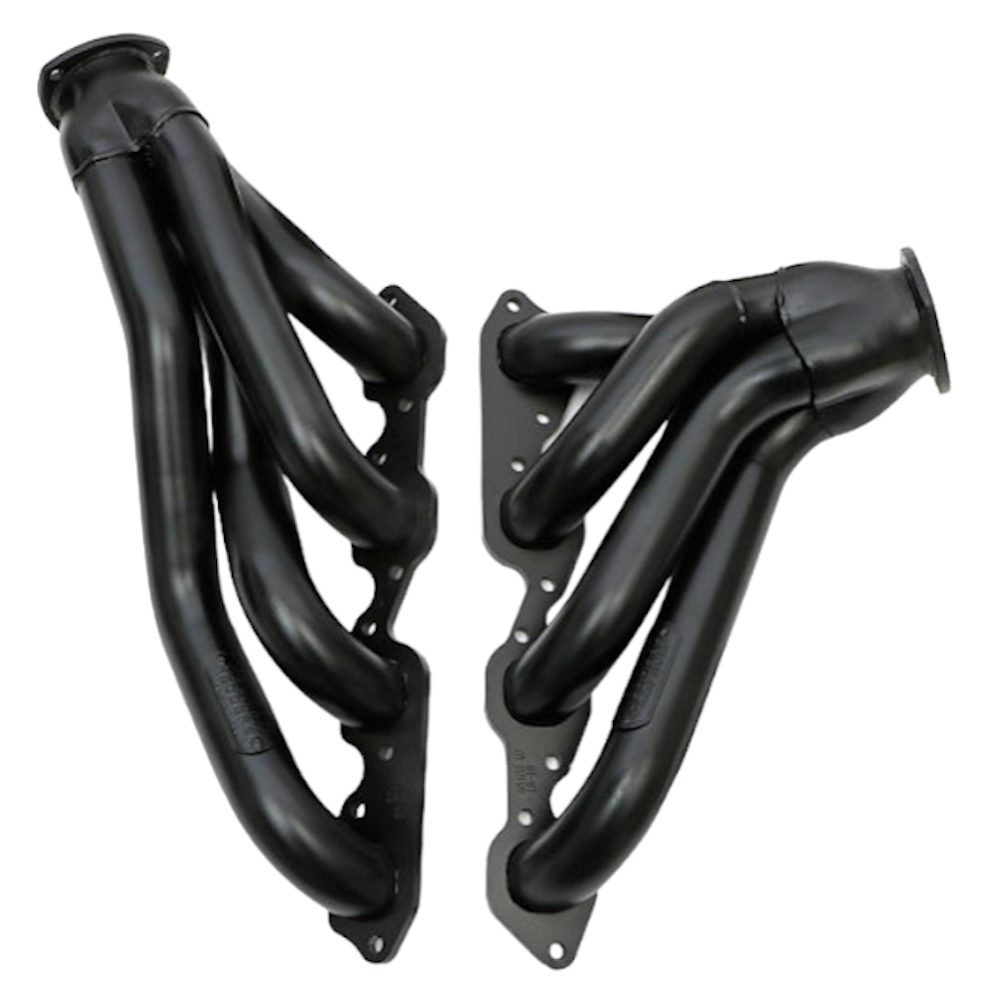

Hedman 65103
Street Headers
Mid-Length Tube Type
NOTE: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Application:
Big Block Chevrolet 396-502 CID (Without A.I.R.)
Various Cars 1965-1981
Chevrolet
1965 - 1974 Bel Air
1965 - 1972 Biscayne
1970 - 1981 Camaro
1966 - 1974 Caprice
1968 - 1973 Chevelle
1968 - 1977 El Camino
1965 - 1974 Impala
1973 - 1974 Laguna
1973 - 1977 Malibu
Click here for full vehicle specifications
Specifications
Tube Diameter | 2 in. |
---|---|
Tube Style | Mid-Length |
Collector Style | 3-Bolt Gasket Style Flange |
Air Conditioning | Yes |
Automatic Transmission - Column | No |
Automatic Transmission - Floor | Yes |
Manual Transmission - Column | No |
Manual Transmission - Floor | Yes |
Collector attachment | 3 in. |
Collector diameter | 3 in. |
Collector size | 3 in. |
Reducer outlet size | 3 in. |
Exhaust system diameter | 3 in. |
Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
E.O. # | No |
Emissions notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
Finish | Uncoated |
Finish type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
Flange style | Standard |
Flange thickness | 0.375 in. |
Header port shape | Square |
Header style | Mid-Length Tube |
Notes | 68-74 Various Chevy Car 396-502 |
Key features | Without A.I.R. |
Port shape | Square |
Power steering | Yes |
Material | Mild Steel |
Tube design | Standard |
Tube length | Mid-Length Tubes |
Tube material thickness | 16g |
Tube size | 2 in. |
Variations | 66103 |
With A.I.R system | No |
With EGR | No |
Weld-up | No |
Tuned | No |
Bolts/studs included | Yes |
Catalytic converters included | No |
Collector bolts included | Yes |
Crossover pipe included | No |
Gasket or seal included | Yes |
Header fasteners included | Yes |
Installation hardware included | Yes |
Motor mounts included | No |
Mounting hardware included | Yes |
Reducers included | Yes |
Y-Pipe included | No |
Quantity | Sold as a pair. |
Primary tube gauge | 16g |
Primary tube diameter | 2 in. |
Package contents | Headers, reducers (exhaust adapters), gaskets, mounting hardware |
Header material | Mild Steel |
Header finish | Uncoated |
Cylinder head port shape | Square |
Cylinder head | Stock Profile Heads |
Header construction | MILD STEEL- Standard-Duty |
Replacement gasket | 27550 |
Replacement head flange gasket | 27550 |
